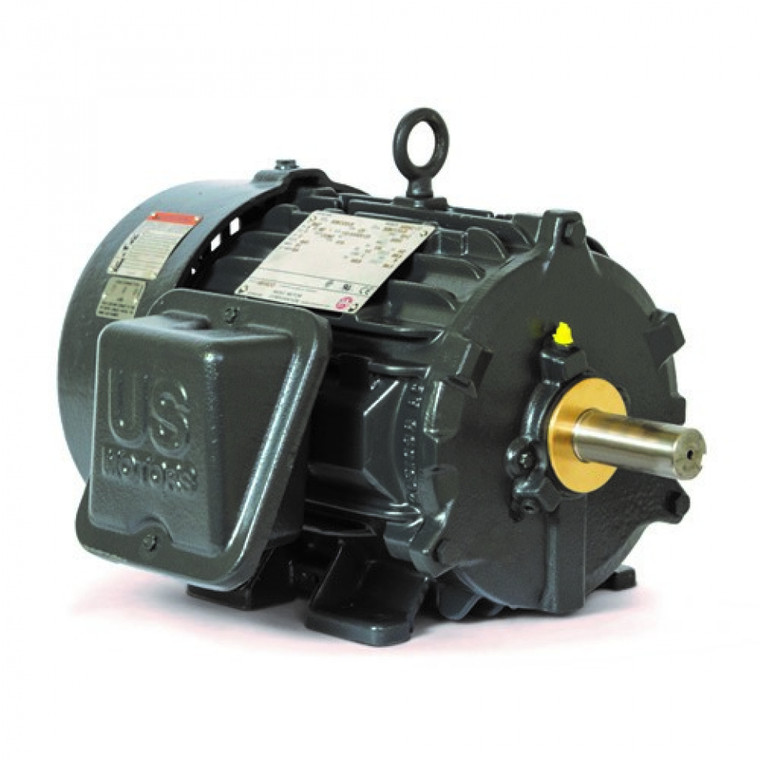

AC Motor, 8D50P2C, 50 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 326T (8D50P2C)

Product Information
US Motors (Nidec) Series50 HP, 1780 RPM, 8D50P2C, 460 V, 60 HZ, 326TStandard FeaturesInverter Grade® Insulation System (Meets NEMA®† MG-1 Part 31)Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
All Cast Iron Construction• Corrosion Resistant Mill & Chem Duty Paint (500 Hour Salt Spray Test)Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware40°C Ambient, NEMA®† Design B Performance (Sine Wave Power)
VBXX®† Bearing Isolators By Inpro/Seal On Both Ends For IP55 Bearing ProtectionSame Size Regreasable Open Bearings, Brass Breathers/Drains
5 Year Warranty (3 Years on Inverter Power)External Grounding Provision, Epoxy Coated Rotor
20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter PowerPrecision Balance (< 0.05 In/Sec Vibration)1 .15 SF On Sine Wave / 1 .0 SF On Inverter Power Meets or Exceeds IEEE 841 Standard 2009Conversion Kits: C&D Flange, Drip Cover Kit, Shaft Grounding Ring (Non-hazardous Locations only)Self-Certified Class I, Division 2, Groups A, B, C, & DDownload BrochureDownload Manual

• DATA SHEET
