Technical Specifications

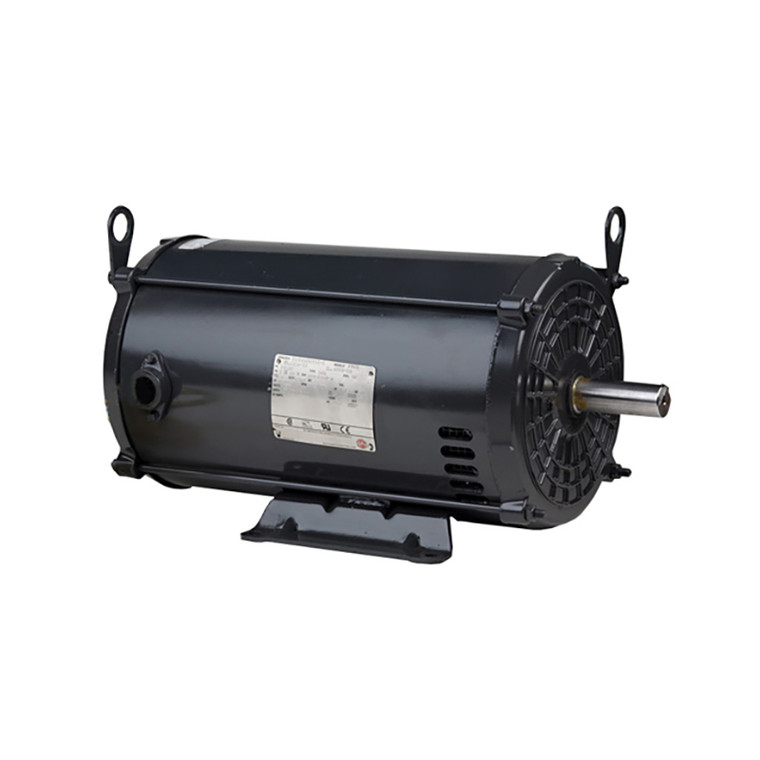

Model:
FD3CA1K14
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
3 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
145TZ
Rated Supply Voltage:
230 V
Motor Enclosure Type:
Totally Enclosed Air Over (TEAO)
Motor Design Class:
L
Full Load Torque:
72.4
Rated Voltage:
230 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
78.5%
C Dimension:
13.7
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
14.9 A
