Technical Specifications
Model:
FG72
Brand:
US Motors (Nidec)
Product Condition:
New

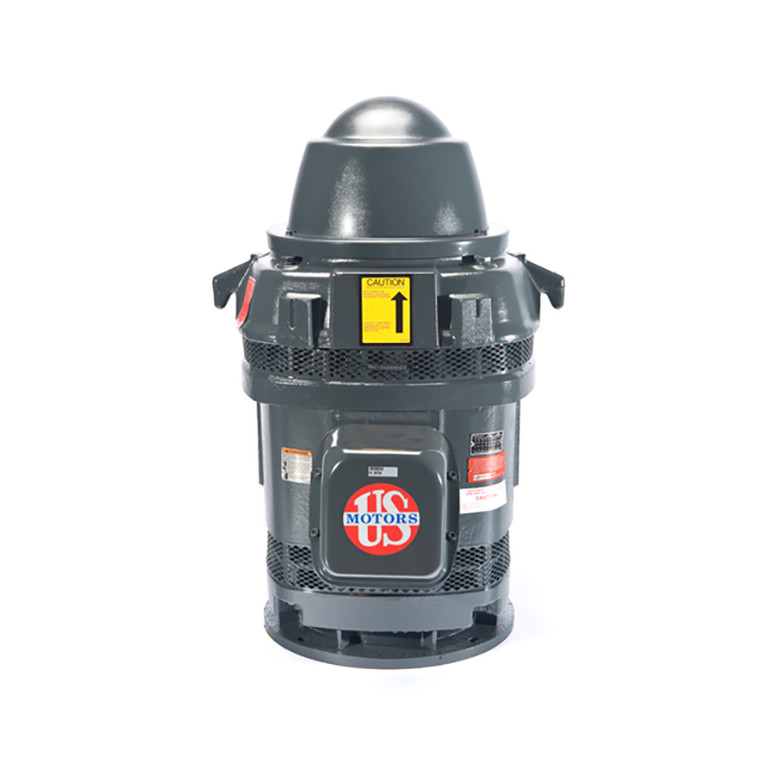

Motor Type:
Vertical
Horsepower Rating:
25 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1775 RPM
Frame Size:
284TPA
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
B
Full Load Torque:
74.1
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
93.6%
C Dimension:
28.1
Bearing Type:
6210-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
58/29.2 A
