Technical Specifications

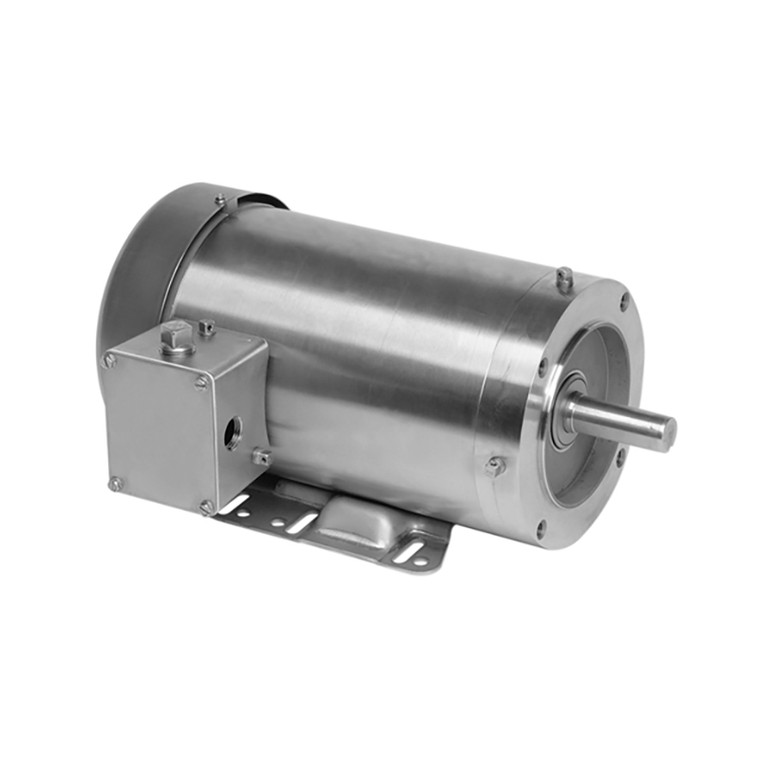

Model:
WDS5P1ACR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
5 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3515 RPM
Frame Size:
184TC
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
7.5
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
89.5%
C Dimension:
18.5
Bearing Type:
6205-2RS-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
13.3-11.8/5.9 A
