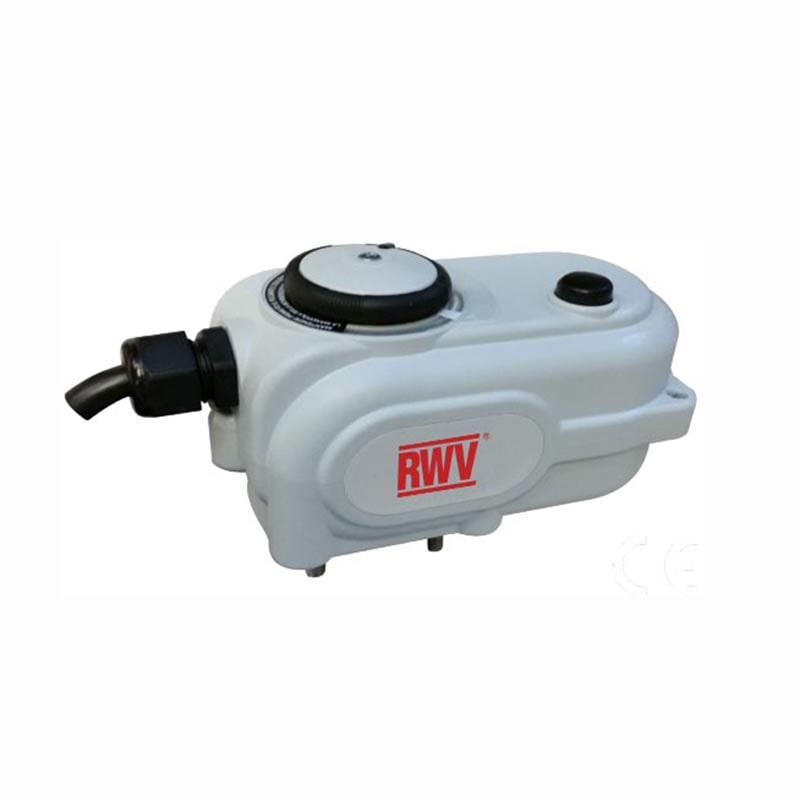

Sloop2 Electric Actuator

Electric actuator with ISO 5211 connection
Double insulated cover according CEI/EN 60335-1
Max torque 11.1 ft-lb, working torque 5.90 ft-lb
Travel 90° in 60 seconds
Manual override, integral heater
F05 connection, stem connection □0.35 inch or □0.43 inch
With 31.5 inch electric wire
Enclosure protection IP65
Power supply 50Hz/60Hz, 24VAC
3 points control
Auxiliary dry open limit switch (Max 230 VC / 6A)
Working temperature: 15 °F to 160 °F
Meet BAA requirement
